Programmable Heat Sealing 60p/Min Zipper Pouch Filling Equipment

Product Categories
Shanghai XUANYI Packaging Technology Co., Ltd.
Contact Now

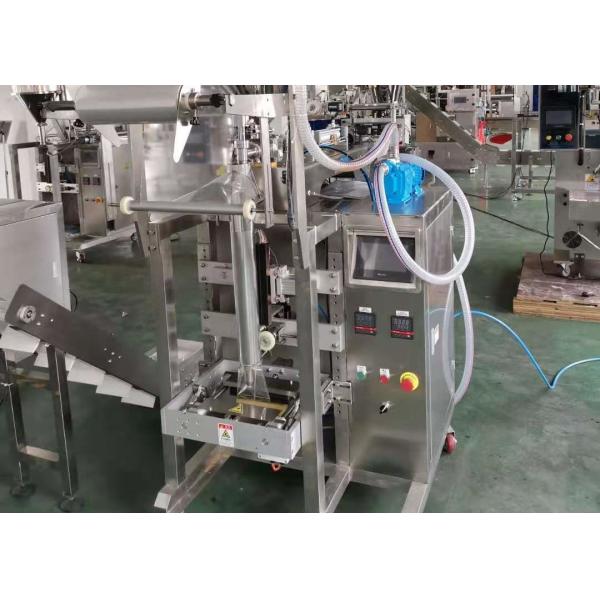

Programmable Heat Sealing 60p/Min Zipper Pouch Filling Equipment

Brand Name : EM

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : USD15000.00-30000.00

Payment Terms : T/T, Western Union, MoneyGram, L/C

Supply Ability : 10 sets

Delivery Time : 20 working days

Packaging Details : wooden case,according with machine size

Warranty : 12 Months

Material : Plastic,Paper,PE.

Bag type : Shopping Bag,flat bag,3 sides sealing

After-sales service provided : Engineers available to service machinery overseas,Online support,Video technical support,Field installation

Machine type : Sealing Machine,Bag Sealing

Voltage : 220V/380V

Power(w) : 2.8KW

Speed : 30-60bags/min

Bag width : adjusting according need

Servo motor : ABB

Contact Now

Plastic / Paper Automatic Food Packing Machine 30-60bags/Min Speed

Filling weight
10-50g (can be customized)
Filling accuracy
±1%
Filling speed
20-40 bottles/min(depend on the material and weight)
Automatically load cap rate
≥99%
Air consumption
0.5-0.7Mpa
Power supply
Three phase380V or single phase 220V50-60Hz(can be customized)
Total power
80W
Total weight
500KG
Dimension
2200 * 1000 * 1600 mm

EM horizontal auto-packing machine is suitable for packing foodstuff. Pharmacy eutical pesticide,and daily using chemical etc. Different filling methods can be used for different products such as liquid. Powder.Granule and so on.

Feature:

Choices for mutilple sealing types of international standard.Safety protection by mutilple layers to keep products from penetration.

Visible during the packing ,easy to learn the operation, convenient and quick to adjust package size.

The main characteristics of equipment

  1. Bag system:Bagging, sealing and filling is relatively independent of the system,The packaging can be adapted to different objects, package size and shape.
  2. Product packaging system:Using heat sealing packaging materials (polyethylene, multilayer composite coating), the automatic bagging completed. measures such as packaging filling and sealing process fully automated production facilities. Trilateral closure pocket or bag is a four-sided flat closure. Use different forms of filling machine, and packaging different products.
  3. Control System:PLC programmable computer controller inverter and so on, high integration, the ability to control and reliable operation .Touch screen technology enabled applications to operate machines more reliable and convenient .Photoelectric sensor, encoder, the switches are close to the EMport of advanced sensors. machinery and electronics integration has been a perfect performance.

Technical Parameter:

  • Pouch Width 60mm-140mm
  • Pouch Length 70mm-180mm
  • Max Volume 300ml
  • Speed 30-60 pouch/min.
  • Pacing Accuracy <±1.5%
  • Reel 400mm
  • Electricity Consumption 2.5KW
  • Air Consumption 0.6m3/min
  • Weight 850KG
  • Size (L×W×H) 2500mm×940mm×1370mm

Programmable Heat Sealing 60p/Min Zipper Pouch Filling Equipment
